tenghui High voltage capacitor compensation cabinet with small investment and quick results TGWB

                       High voltage capacitor compensation cabinet with small investment and quick results

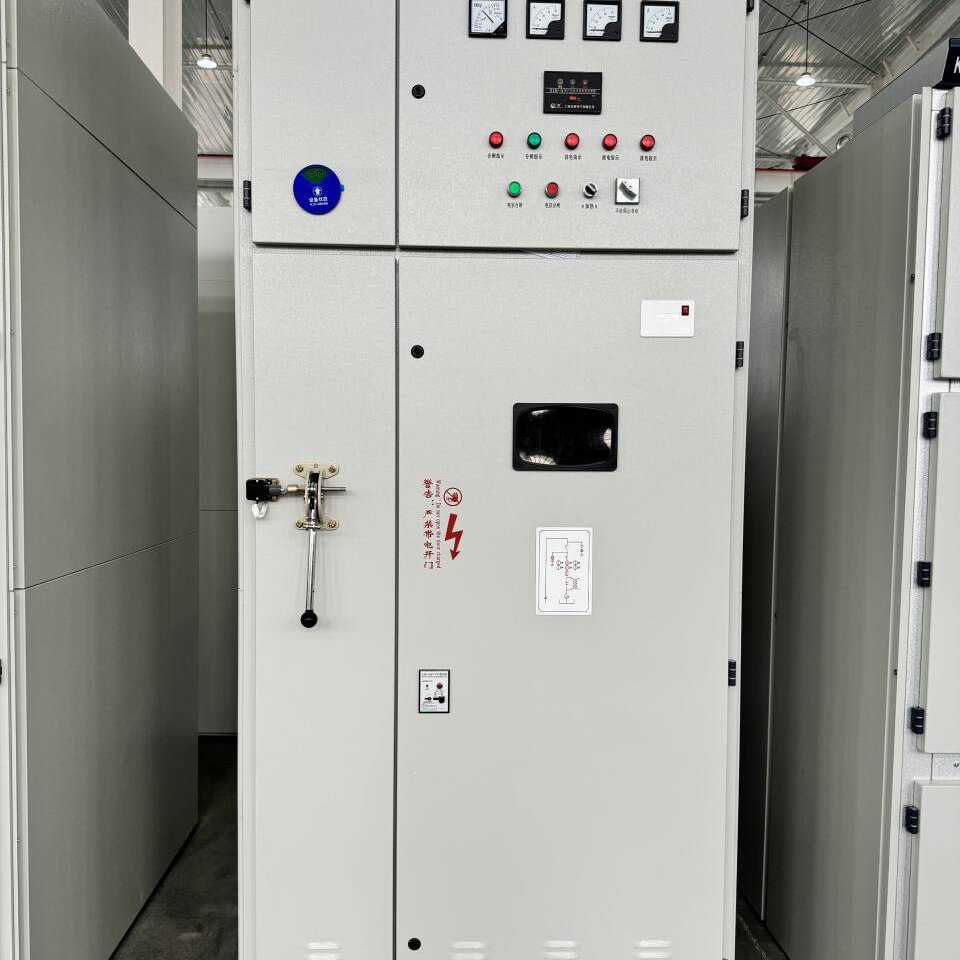

       The Tenghui TDWB capacitor compensation cabinet is a device designed for reactive power compensation of cage type motors and low-voltage power grids with a rated voltage of 380V. It uses high-quality low-voltage self-healing capacitors and internal discharge resistors that can be activated. After the external voltage is disconnected for 1 minute, the residual voltage drops below 50V. A microcomputer central controller is used to automatically control the switching of the capacitor bank according to the high or low load power factor, ensuring that the power factor meets the set requirements.
Product advantages:
(1) Reduce line losses by more than 50%. Nationwide, line losses account for about 12%, mainly caused by reactive power components. If reactive power line losses are reduced by 50% to 60%, about 50 billion kWh of electricity can be saved in one year, equivalent to half of the power generation capacity of the Three Gorges Project. This type does not consume primary energy, requires minimal investment, and yields quick results. Company Technical Consultation: Geng Gong
(2) Avoid fines. According to the notice issued by the Ministry of Electric Power and the Price Bureau of our country on the issuance of the "Power Factor Adjustment Electricity Fee Method", when the power factor is 0.94, the electricity fee will be reduced by 1.1%, and when the power factor is 0.6, the electricity fee will be increased by 15%.
(3) Expansion can be achieved without additional investment. After reactive power compensation, the electricity carrying capacity can be increased and the transformer can operate at full load. For example, a 315KVA transformer with a power factor COS ф=0.6 load can only provide high-quality service with 189KW active power and cannot withstand a capacity of around 300KW. Therefore, a 500KVA transformer needs to be purchased for replacement. Increasing the power factor from 0.6 to 0.98 is equivalent to expanding by 63%. The active power has been increased from 189KW to 309KW, which can basically meet the required capacity and save a 500KVA transformer, with a cost of about three to four hundred thousand yuan.
(4) Improving power quality, extending the lifespan of electrical appliances, and enhancing product quality.
Ordering Instructions
1. The capacitor compensation cabinet is suitable for cage type motors, and the motor model, voltage, and compensation capacity need to be provided;
When compensating for the power grid, it is necessary to provide the power, input voltage, and compensation capacity of the grid;
3. The input and output methods of the compensation device.
4. Other user requirements
